Servo leveler & Uncoiler
FST-450/650 & FSV-450/65
FAIR OAKS's newly developed second-generation peripheral system is suitable for stamping materials with a thickness of 0.2 to 0.5mm silicon steel sheets, making it the best choice for producing new energy electric motors.
Product

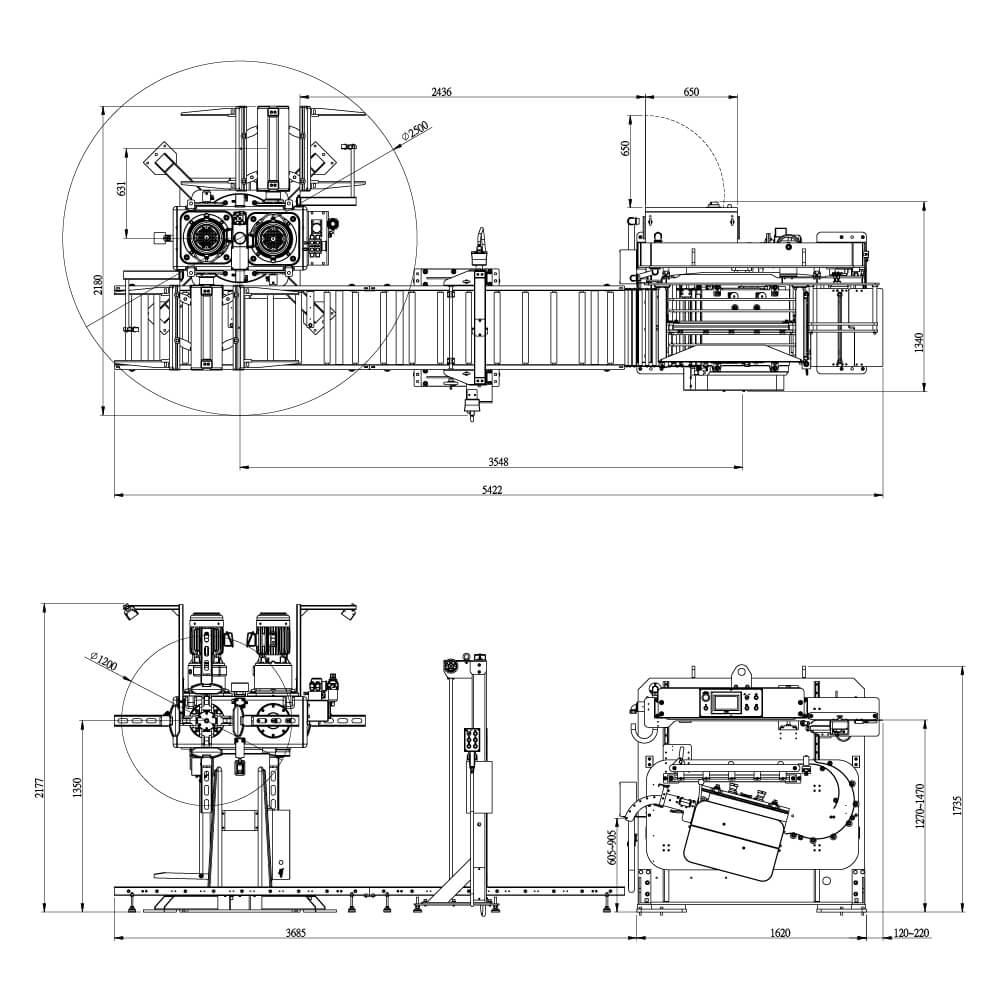

450 Servo leveler "S" Loop and Active type Uncoiler

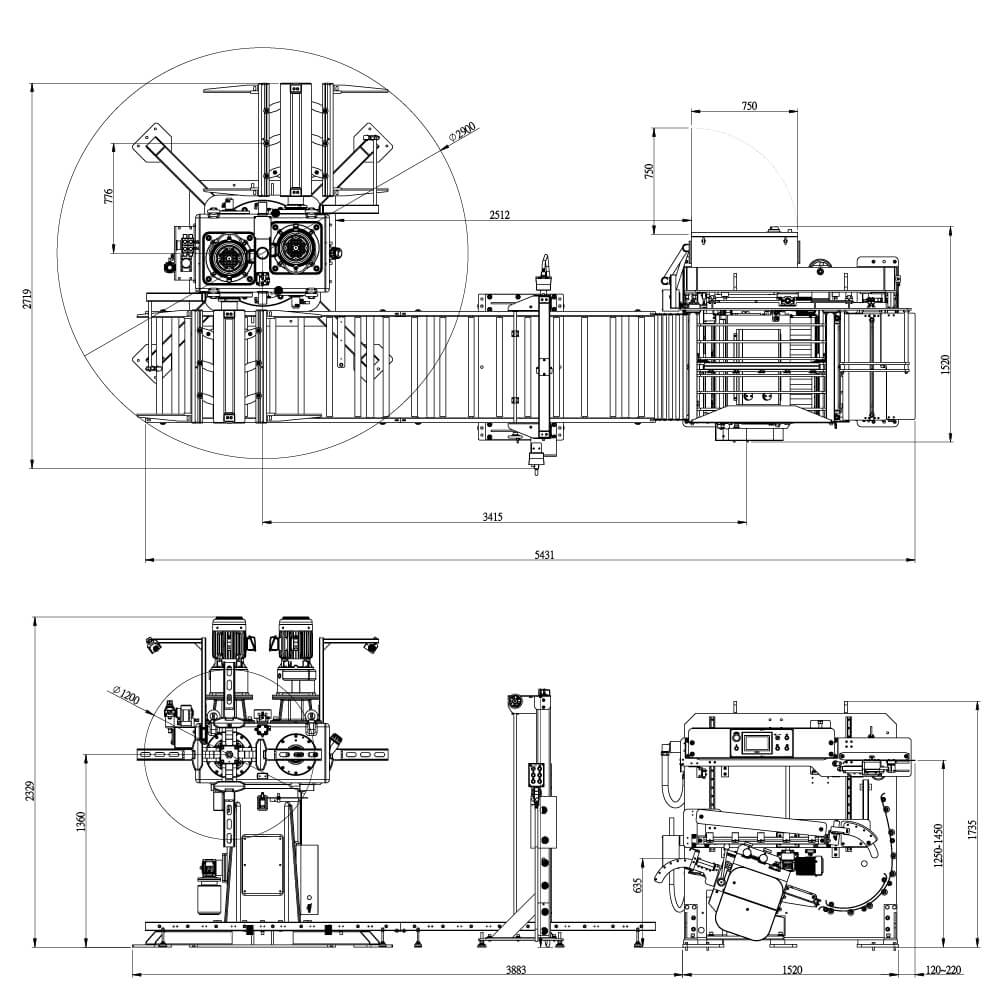

650 Servo leveler "S" Loop and Active type Uncoiler
FST-450/650 & FSV-450/65
Servo leveler & Uncoiler
|
機型 |
FST-450 |
FST-650 |
|
Width of material m) |
100~450 |
100~650 |
|
Linear height (mm) |
1270~1470 |
1250~1450 |
|
Thickness of material (mm) |
0.2~1.0 |
0.2~0.5 |
|
Feed speed of leveller (m/min) |
8~90 |
|
|
Driving motor (kw) |
2 |
|
